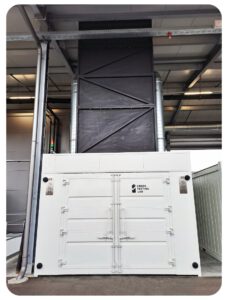

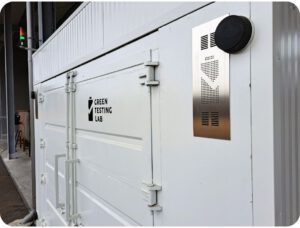

Abuse Test Chamber AC02
Test chamber for battery tests beyond the state of the art for the highest demands in abuse testing
The abuse test chamber AC02 is designed to deliver precise and reliable test results, ensuring the highest level of accuarcy and efficiency. This opens up new possibilities for abuse testing of batteries and components.
- High flexible system to realize customized test setups according to customer requirements
- Remote test control system that allows to monitor tests live from anywhere
Extended Options for Abuse Testing
The abuse test chamber AC02 from GTL was engineered to meet the highest demands in abuse testing.
The functions have been expanded to benefit from more options than with previous systems.
This test chamber extends abuse testing beyond the state of the art.
Ask our experts for more information.
Technical Data
- Various Extinguishing Systems
- Temperature Profiles
Depending on customer requirements, there are various options for extinguishing the battery.
The battery can also be fully burned down under controlled conditions, if required.
Various environmental parameters can be set to meet customer requirements.
- Optical Video System
- IR Video System
- Remote Test Control System
“We bring our test control room to the customer’s desk”
The customer can monitor the test via video conference using the implemented remote control system.
All parameters can be called up remotely so that the customer does not have to be on-site to follow the test live.
The installed video system with lighting is ideal for capturing every detail visually. High-speed recordings can be made from a wide variety of perspectives.
- Battery Energy up to 250 kWh
- Battery Weight up to 2000 kg
- Battery Size max. 3 m x 3 m
The battery can be connected to the target system, where different interfaces are supported. Thermal management and all electronic and electrical interfaces can be simulated.
A rest bus simulation can also be carried out if required.
The chamber is ideal for performing safety tests for functional safety in accordance with ISO 26262.
- Climatizable (Heating & Cooling)
- Up to Hazard Level 7

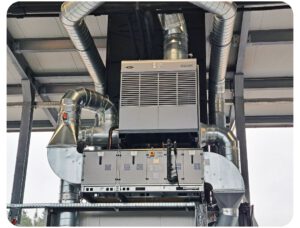

The test chamber can be conditioned according to customer requirements.
The conditioning system is designed to hold up even the most difficult requirements during abuse testing.
Your requirements with our expertise
Our highly qualified engineers would be delighted to implement your requirements and deliver high-quality test results.
With our specialized expertise, we provide support in all areas of abuse testing. We want to implement even the most specific requirements for you.
More technical details on request! Let’s discuss how the AC02 can support your testing needs.
Key Features at a Glance
- Climatizable (Heating, Cooling)
- Temperature profiles
- Various Extinguishing Systems
- Battery Energy up to 250 kWh
- Battery Weight up to 2000 kg
- Battery Size max. 3 m x 3 m
- Optical Video System
- IR Video System
- Remote Test Control System
- Up to Hazard Level 7
abusive tests.
